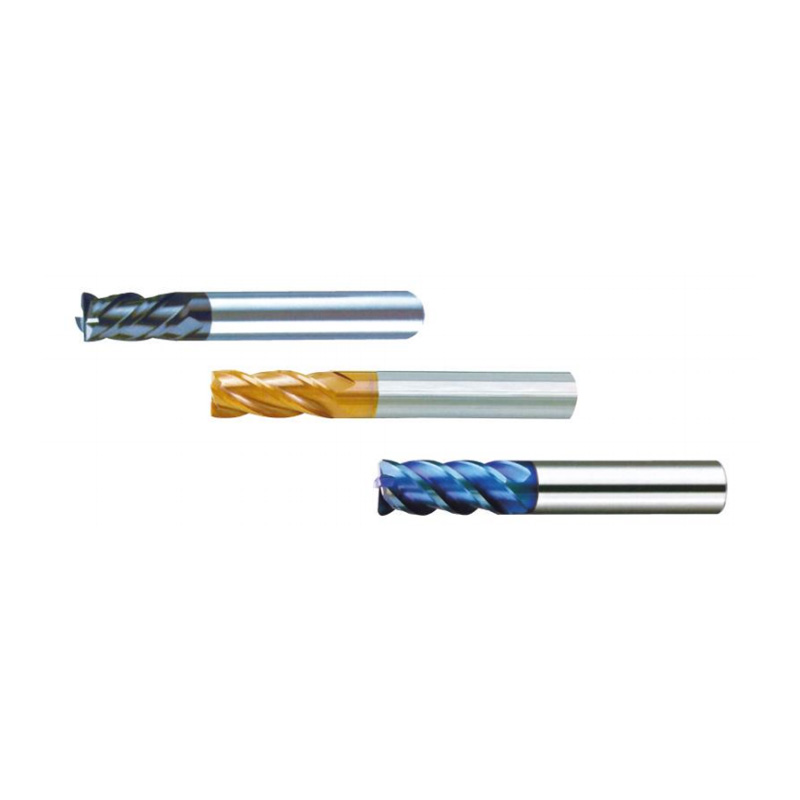

4 Flutes Square End Mill Series
4 Flutes Square End Mill Series
4 Flutes Square End Mill Series
4 Flutes Square End Mill Series

4 Flutes Square End Mill Series

Product Features:

1. High-quality material: The 4-edge end milling cutter series uses carbide as the main material, which has high hardness and wear resistance. It can maintain the stability and durability of the tool during high-speed cutting.

2. Multiple specifications available: This series of products includes three specifications - HRC45, HRC55, and HRC65, which are suitable for processing materials with hardness within 45 degrees, 55 degrees, and 65 degrees respectively, meeting the needs of different customers.

3. Four-edge design: The 4-edge end milling cutter adopts a four-edge design, providing a larger cutting area, improving cutting efficiency, and reducing cutting force to reduce the risk of workpiece deformation.

4. High-precision machining: This series of products undergoes precision grinding and honing treatment, ensuring good geometric accuracy and surface quality, meeting the requirements of high-precision machining.

These series are classified by the numbers 45, 55, and 65, representing different hardness levels, each indicating distinct material properties and machining performance:
HRC45:
Indicates a hardness of 45 HRC (Rockwell hardness), typically corresponding to materials of moderate hardness, suitable for general machining tasks.
At this hardness level, the tools possess a certain level of hardness and wear resistance, capable of meeting ordinary milling, cutting, and machining requirements.

HRC55:
Represents a hardness of 55 HRC, slightly higher than HRC45, suitable for materials with higher hardness and some precision machining tasks.
At this hardness level, the tools exhibit higher hardness and wear resistance, suitable for tasks that demand higher surface quality and precision.

HRC65:
Indicates a hardness of 65 HRC, the high hardness level among these series, suitable for badly hard materials and high-precision machining tasks.
At this hardness level, the tools possess badly high hardness and wear resistance, capable of tackling highly challenging machining tasks, such as processing titanium alloys, tool steels, and other high-hardness materials.

Product Advantages:

1. Efficient cutting: Carbide-made 4-edge end milling cutters have high hardness and wear resistance, maintaining stability during high-speed cutting, improving cutting efficiency, and shortening processing time.

2. Long lifespan: Carbide-made tools have a longer service life, can withstand large cutting loads, reduce tool replacement frequency, and lower production costs.

3. High-precision machining: The 4-edge end milling cutter undergoes precision grinding and honing treatment, ensuring good geometric accuracy and surface quality, meeting the requirements of high-precision machining and improving product quality.

4. Wide application range: This series of products includes three specifications - HRC45, HRC55, and HRC65, suitable for processing materials with hardness within 45 degrees, 55 degrees, and 65 degrees respectively, meeting the needs of different customers.

5. Good stability: The 4-edge end milling cutter adopts a four-edge design, providing a larger cutting area, reducing cutting force, and reducing the risk of workpiece deformation, ensuring the stability of the processing process.

6. Easy installation and adjustment: The 4-edge end milling cutter adopts a standard tool holder interface, making it easy to install and adjust, facilitating operator tool replacement and maintenance.

7. Good heat dissipation performance: Carbide-made tools have good heat dissipation performance, effectively reducing the working temperature of the tool and extending its service life.

8. Cost savings: Carbide-made 4-edge end milling cutters have a longer service life and higher cutting efficiency, reducing tool replacement frequency and processing time, thereby reducing production costs.

9.Safety and reliability: The 4-edge end milling cutter undergoes strict quality control and testing, ensuring good cutting performance and stability, guaranteeing the safety and reliability of the processing process.

Get A Quote
PREV：2 Flutes Ball-nose End Mill Series
NEXT：No next article
  • Parameter
  • Contact Us
  • Length Cutter diameter(d) Shank diameter(D) Blade length(I) Total length of(L)
    Standard 1 4 3 50
    1.5 4 4 50
    2 4 5 50
    2.5 4 6 50
    3 4 8 50
    3.5 4 10 50
    4 4 11 50
    1 6 3 50
    1.5 6 4 50
    2 6 5 50
    2.5 6 6 50
    3 6 8 50
    3.5 6 10 50
    4 6 11 50
    5 6 13 50
    6 6 15 50
    7 8 17 60
    8 8 20 60
    10 10 25 75
    12 12 30 75
    14 14 35 100
    16 16 40 100
    18 18 40 100
    20 20 40 100
    The stretched 4 4 20 75
    6 6 25 75
    7 8 25 75
    8 8 30 100
    4 4 25 100
    6 6 30 100
    8 8 35 100
    10 10 40 100
    12 12 45 100
    6 6 30 150
    8 8 40 150
    10 10 50 150
    12 12 50 150
    16 16 70 150
    18 18 80 150
    20 20 80 150
